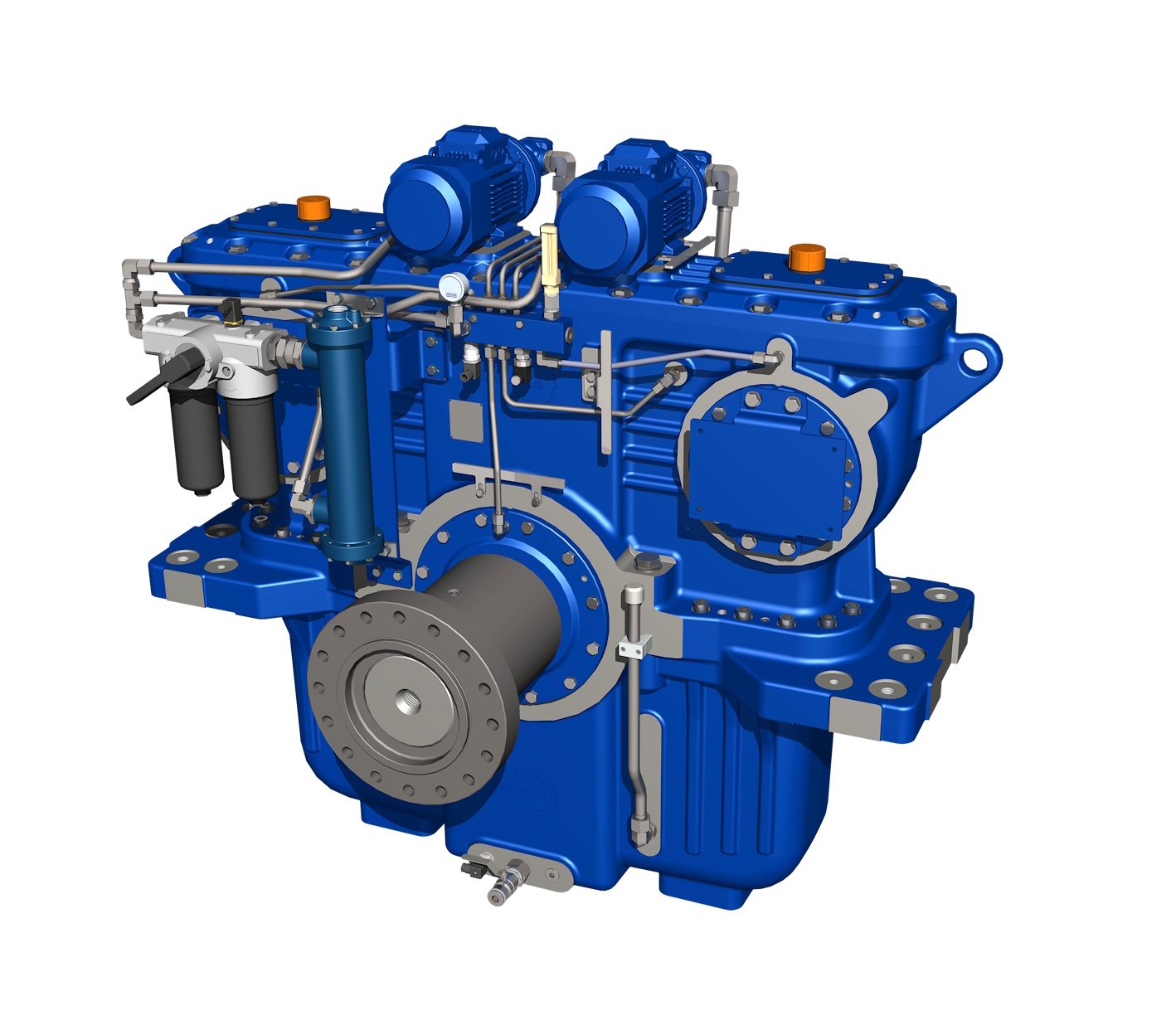

Katsa´s 2L550 Electric Main Propulsion Gearbox has State-of-the-Art design focused for highest efficiency and silent running.
The Gearbox has two inputs for Electric Motors combined to one Thrust output for Propeller shaft.
Integrated lubrication system ensures reliability and long service life for sustainable Maritime operation.
2L550 Series power is rated up to 3000kW , ratio up to i=7 and thrust of 200kN.

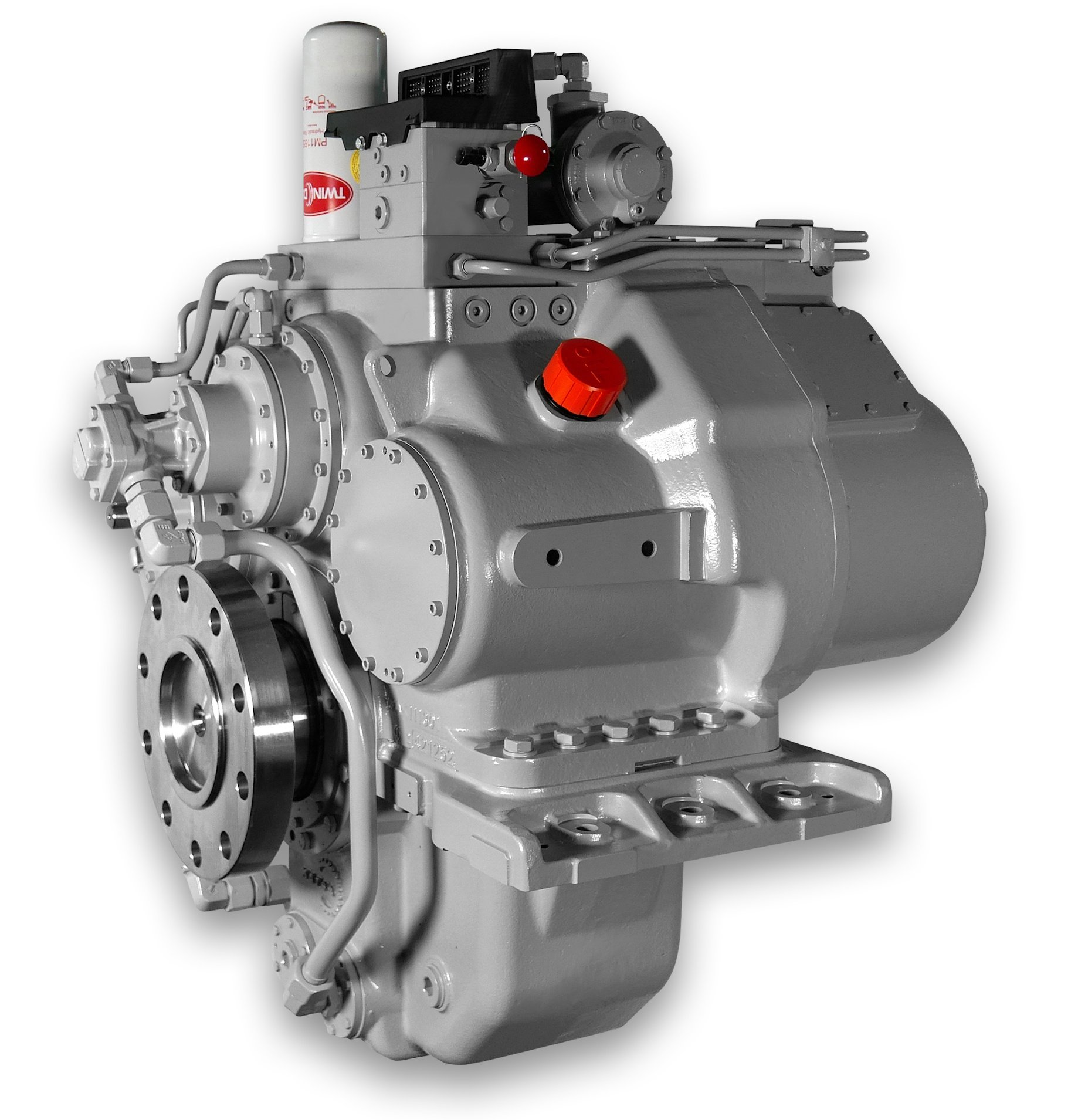

MGX-8205 is a New Generation Marine Reversible Gearbox from Twin Disc.
Maximum input power: 850 kw (1140 hp) at 2300 rpm Continuous Duty rating through 5.08:1 ratio.
Standard equipment:
• Vertical offset, nodular iron housing
• Electric GP-valve with manual override
• EC600PC profile module – interface for engagement signals
• Oil strainer and oil filter
Options available:
• SAE J617 housing no. 1 or no. 0
• Mechanical control valve
• Special mounting brackets
• Main Live PTO: Maximum 1200 Nm (shaft or direct pump mount according to
SAE or other standards) with optional hydraulic clutchable pump mount
• Second PTO/PTI shaft with several options as: Live PTO 1200 Nm or full power;
clutchable PTO 1200 Nm or full power; live PTI full power; clutchable PTI 1200 Nm;
shaft brake
• Separate step up/step down gearbox on PTO/PTI
• Trailing pump and CPP options available

Introduced by Veth's founder in 1970, the Veth Jet revolutionized marine propulsion with its 360° thruster for shallow draft. A trusted choice in the maritime industry, it is renowned for its adaptability, durability, and reliability. Designed to withstand heavy-duty use, the Veth Jet excels in the toughest conditions. With over 1,400 units built, it continues to set the standard for efficient and versatile marine propulsion.
https://twindisc.com/product/veth-jet/

Veth Azimuth Thrusters provide 360° steerable propulsion, delivering maximum maneuverability and efficiency. Designed for a wide range of vessels, they are available in Z-drive and L-drive configurations, with options for diesel, electric, or hybrid power. With a focus on high performance, reliability, and easy integration, Veth thrusters ensure smooth sailing in any condition. Whether for main propulsion or auxiliary use, our solutions enhance vessel control, reduce fuel consumption, and optimize operational flexibility.
https://twindisc.com/product-category/on-water/veth-propulsion/azimuth-thrusters/
